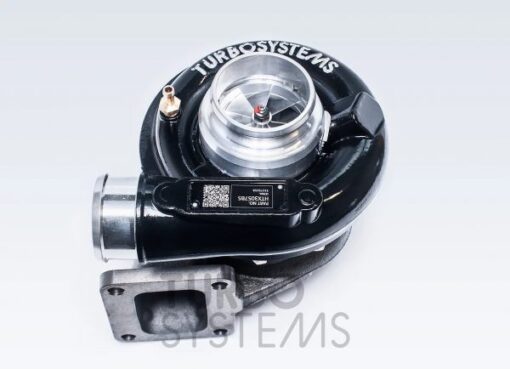

Turbosystems, HTX3057B5
10,495kr
Kan restnoteras
Turbosystems, HTX3057B5
Power range 470-570 HP
- Cooling: Water cooled bearing housing with 2 M14x1.5 ports
- Bearings: Dual ceramic ball bearings
- Compressor air Intake diameter: 63mm (2,5″)
- Compressor air Outlet diameter: 51mm (2″)
- Flange: T3
- Exhaust connection: 3″ V-band clamp
- Ported shroud compressor housing
- AN4 oil inlet with integrated oil restrictor
- Compressor side
- Compressor wheel: 9+0 blades machined from the solid billet
- Inducer: 57mm
- Exducer: 71mm
- Turbine side
- Housing: Single scroll 14cm2 / AR: 1.05
- Turbine wheel: 9 blades
- Inducer: 60mm
- Exducer: 55mm
- Flange: T3
| Vikt | 10 kg |
|---|---|
| Dimensioner | 40 × 40 × 40 cm |
