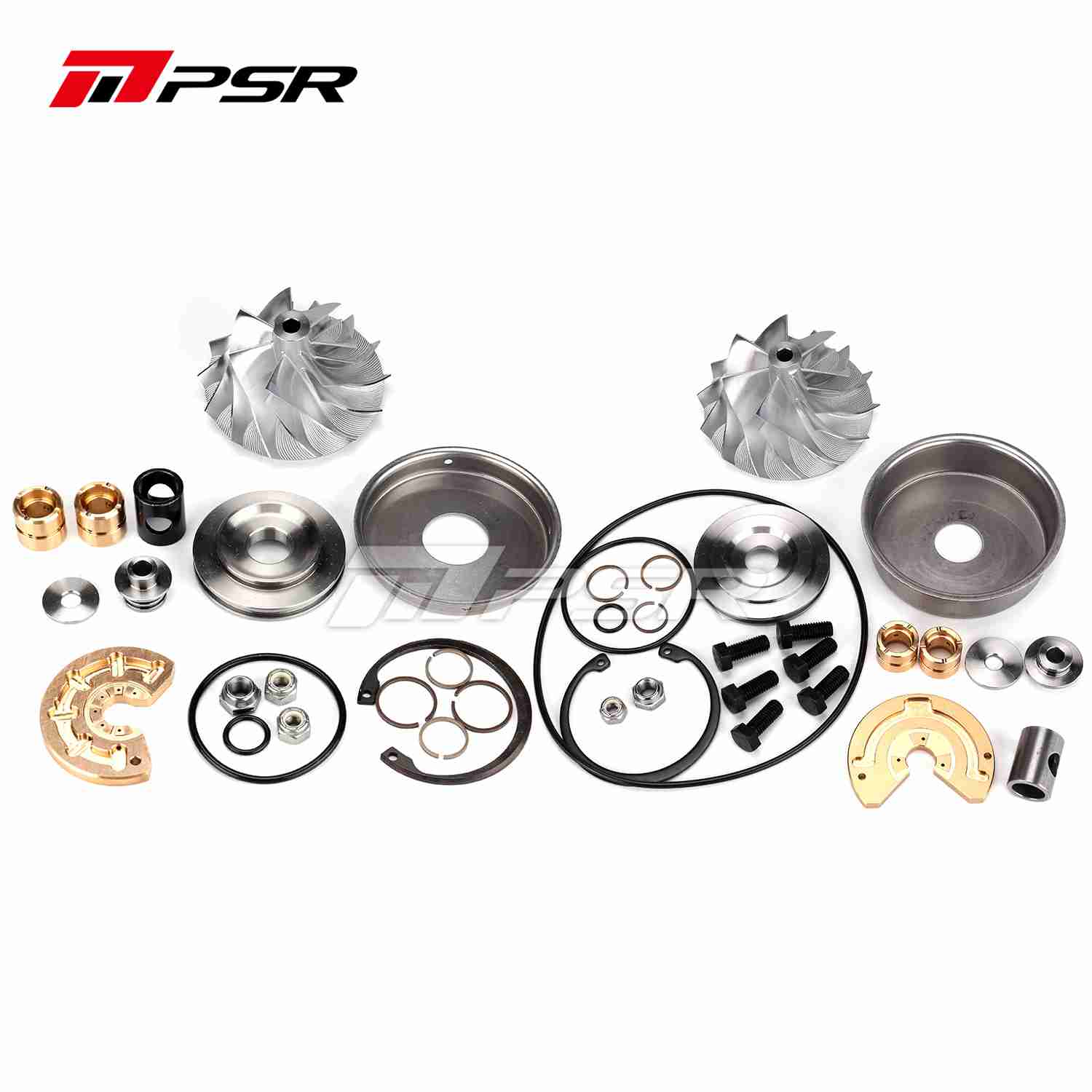

Rebuild Kit Billet Compressor Wheel for 2008-2010 Powerstroke 6.4 Turbos

-Application:

Stock turbo parts Fitment – No modifications required.

2008-2010Ford Powerstroke 6.4L High + Low PressureTurbos ONLY

-Features:

• 5 Axis CNC milled, machined from Solid, make more aggressive blades design possible.Spool up faster, Lower EGTs and More Boost!
• High quality CNC machined brass thrust bearings enhances turbochargers durability
• Upgrade heavy duty twin hydrodynamic journal bearings extend the turbo service life
• Both heat shields added to this kit compare to other kit on the market
• Fits 2008-2010 Ford 6.4 Powerstroke F250 F350 F450 F550 compound turbo

-Item Details:

1. -Low Side BilletCompressor Wheel

Billet compressor Wheel Inducer: 64.5mm

Billetcompressor Wheel Exducer/Tapered Tip Exducer: 88.55mm/96.14mm

Blade Height: 38.68mm

Bore Size: 7.94mm

Blades: 7+7

-High SideBilletCompressor Wheel

Billetcompressor Wheel Inducer: 51.8mm

Billetcompressor Wheel Exducer/Tapered Tip Exducer: 74.1mm/79.87mm

Blade Height: 32.36mm

Bore Size: 7mm

Blades: 7+7

2. Reference Part #:

1848300C92 / 1848300C93 / 1848300C98 / 5010361R92

1848303C1 / 1848300C94 / 1848300C95 / 1848300C96

1848303C2 / 8C3Z-6K682-B / 1848303C3 / 8C3Z-6K682-A

1848301C1 / 1848300C97
