94-03 Ford 7.3 Powerstroke TP38 GTP38 Billet Turbo Compressor Wheel+Rebuild Kit

Billet Compressor Wheel Rebuild Repair Kit 360 Copper Bar Thrust Bearing for 94-03 Ford 7.3L Powerstroke Diesel Stock TX38 PTX38 Turbo

-Application:

Stock turbo parts Fitment – No modifications required.

1994-2003 Ford 7.3L Powerstroke Stock Size Genuine TX38 PTX38 Turbo ONLY

-Item Details:

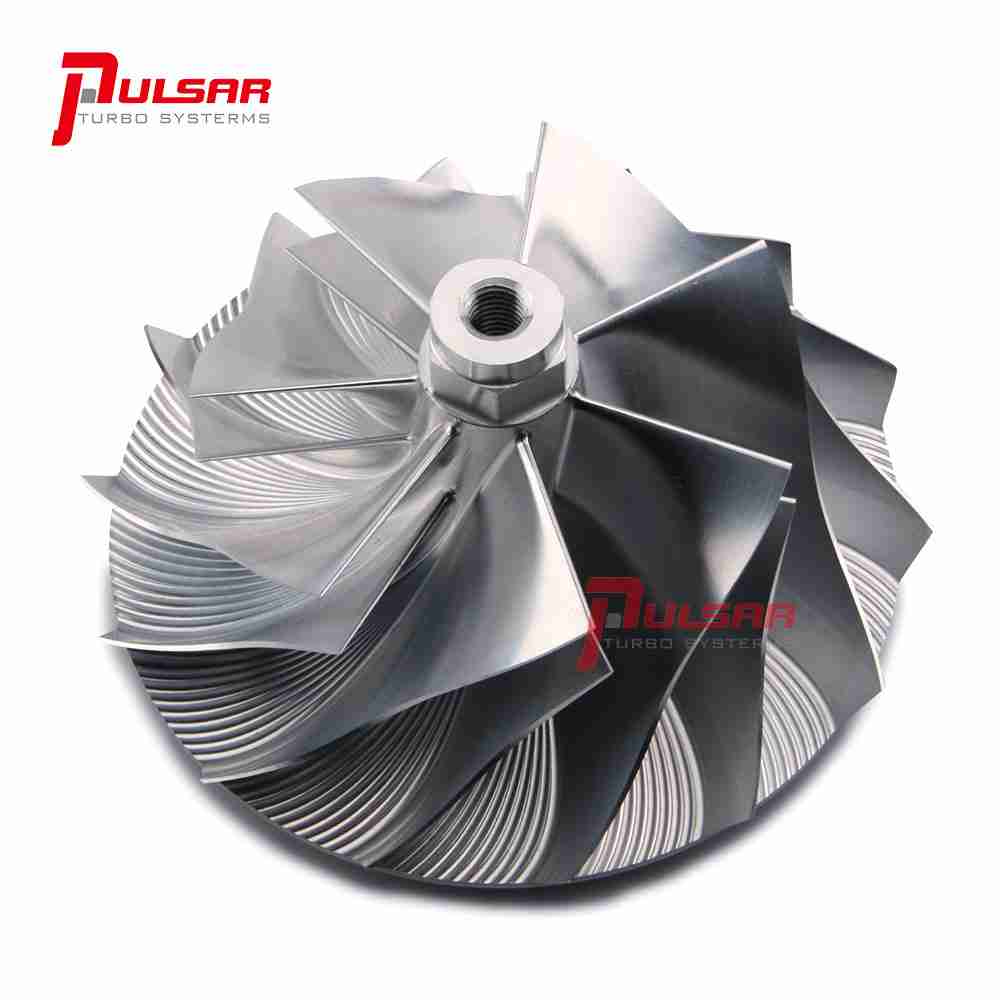

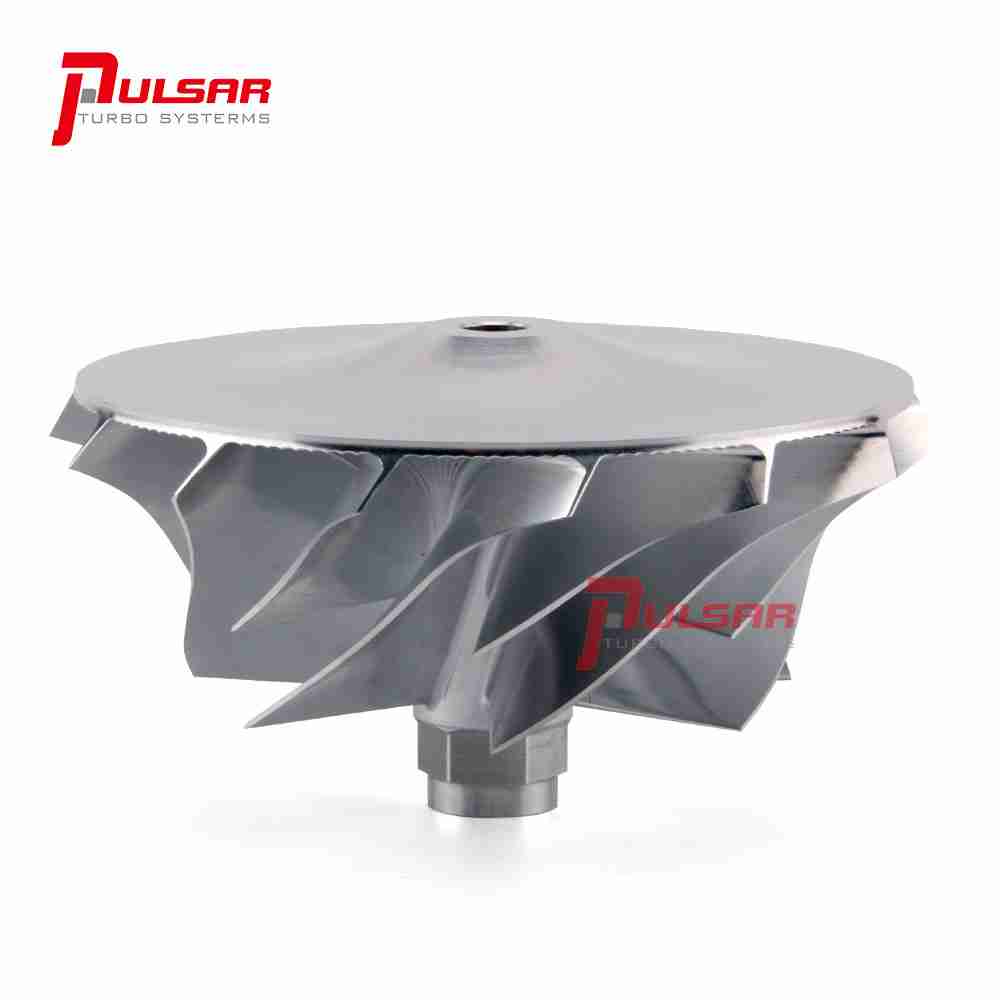

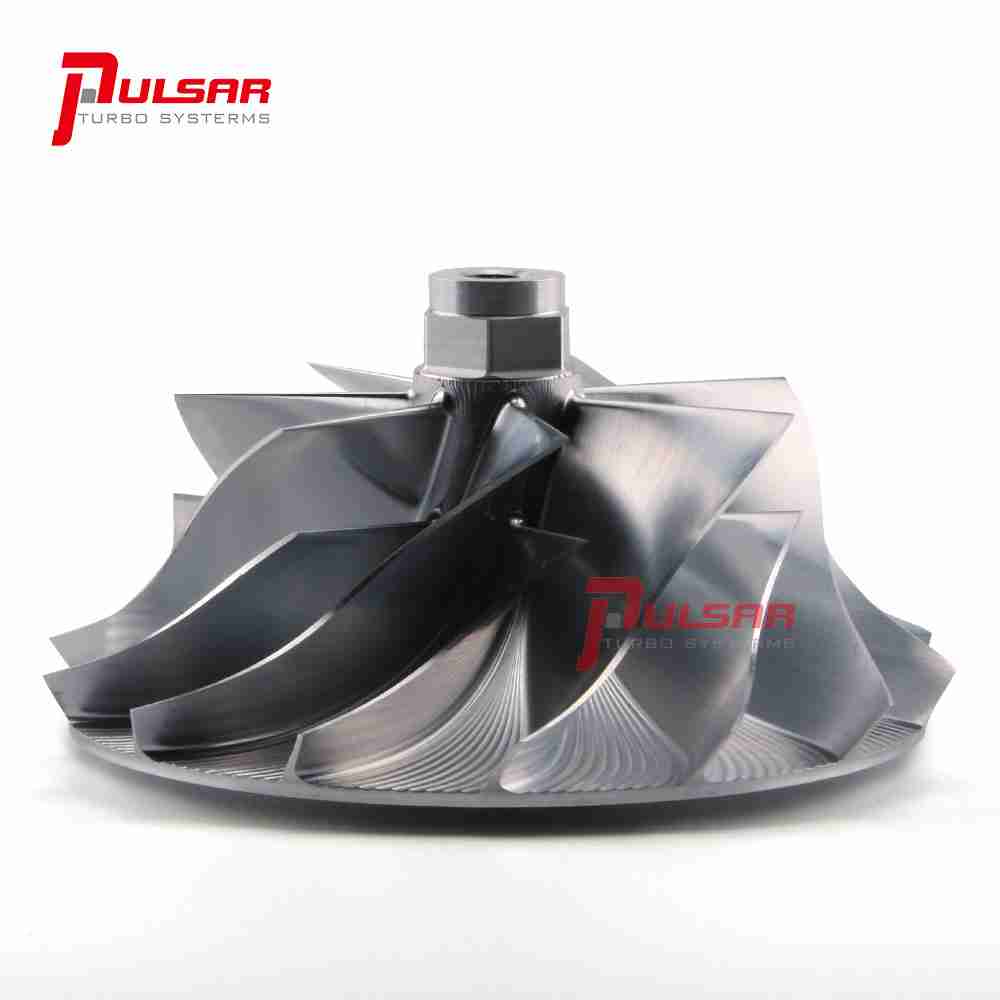

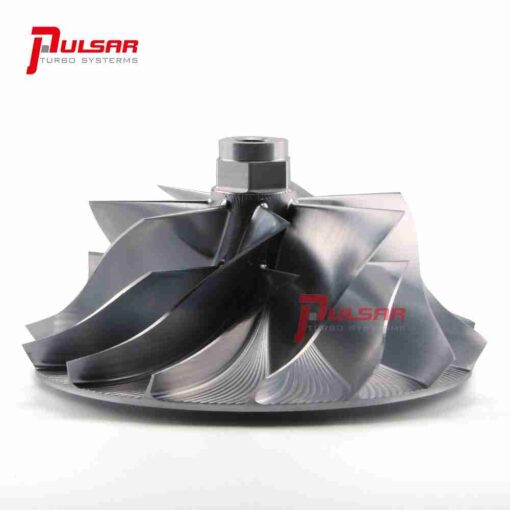

Billet compressor Wheel Inducer: 59.87mm

Billet compressor Wheel Exducer/Tapered Tip Exducer: 80.07mm/86.22mm

Billet compressor Wheel Blade Height: 30.63mm

Billet compressor Wheel Bore: Threaded-1/4-28G-RHT

Billet compressor Wheel Blades: 7+7

Stepped gap seal ring on the turbine end

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360 Degree Thrust Bearing CNC machined from COOPER BAR

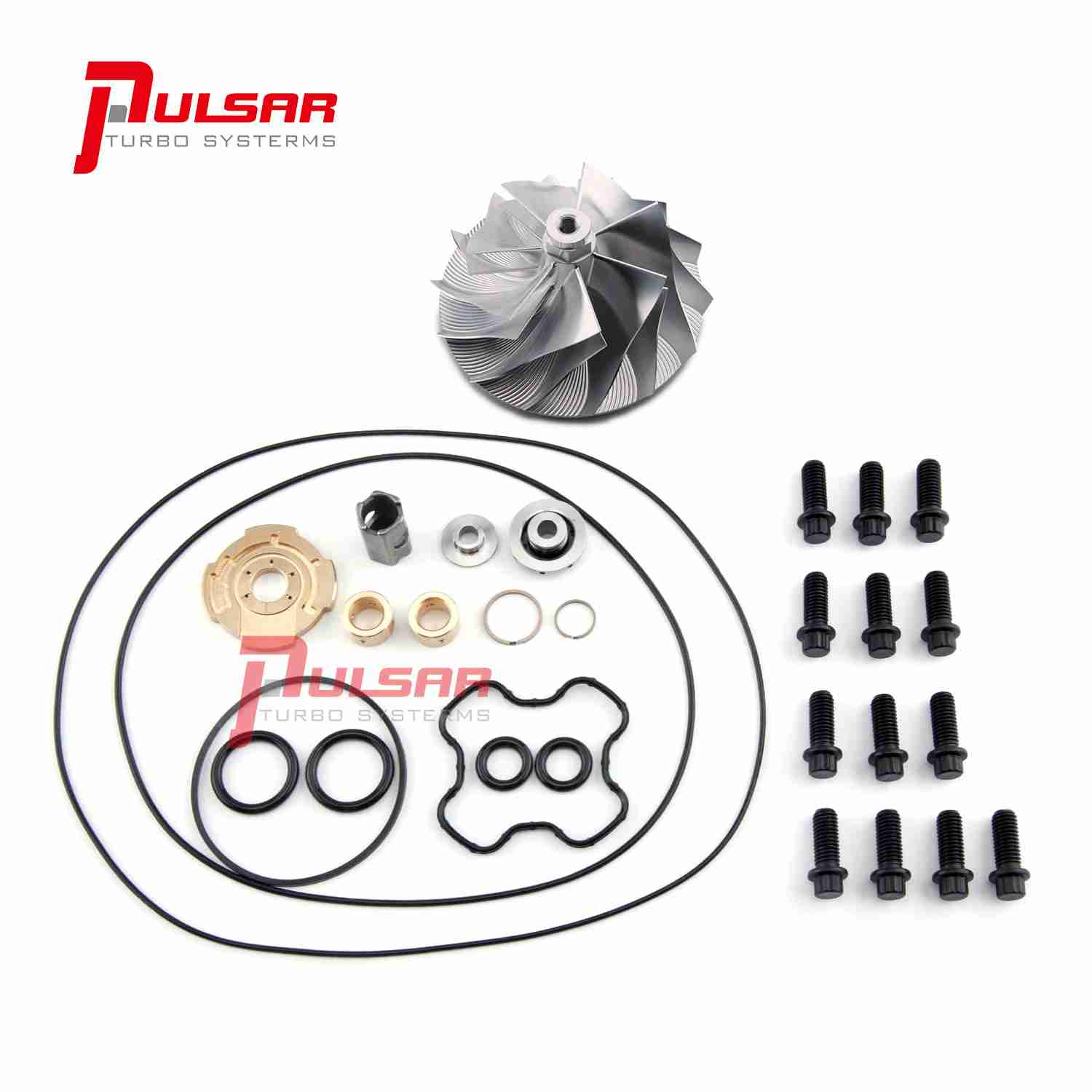

This rebuild kit contains:

1*BILLET COMPRESSOR WHEEL

1*PTX38 COMPRESSOR HOUSING SEAL O-RING

1*TX38 COMPRESSOR HOUSING SEAL O-RING

1*PTX38 BACK PLATE SEAL O-RING

1*TX38 BACK PLATE SEAL O-RING

2*PEDESTAL SEAL O-RING

2*PEDESTAL SEAL O-RING

1*360 DEGREE COPPER THRUST BEARING

1*THRUST COLLAR

1*THRUST SPACER

2*JOURNAL BEARING

1*BEARING SPACER

13*HOUSING BOLT

1*COMPRESSOR END SEAL RING(STEPPED GAP)

1*TURBINE END SEAL RING(STEPPED GAP)

-Special Note:

1. Professional install is highly recommended! Please ask all questions prior to purchase!

2. Highly recommended getting the CHRA VSR balanced after rebuild (is required for warranty purposes)!
