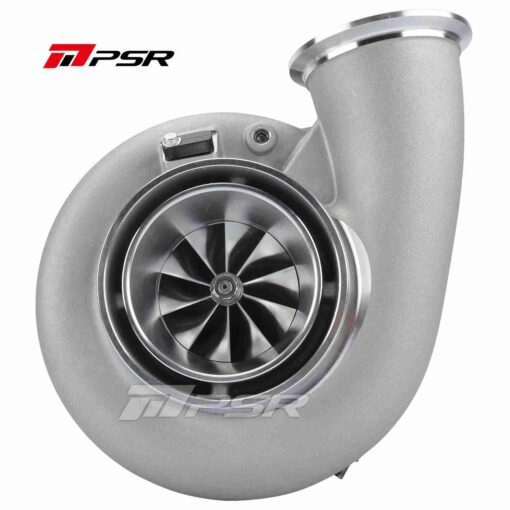

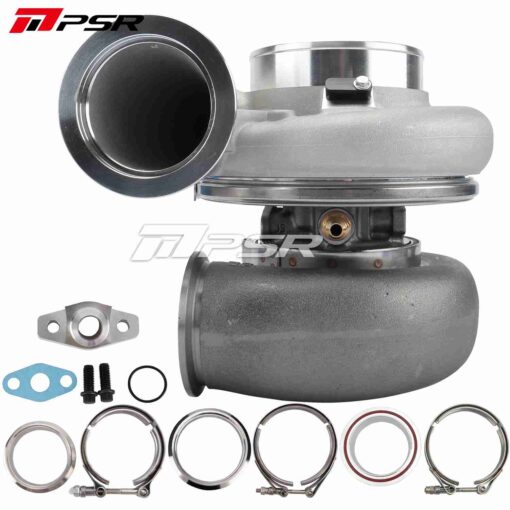

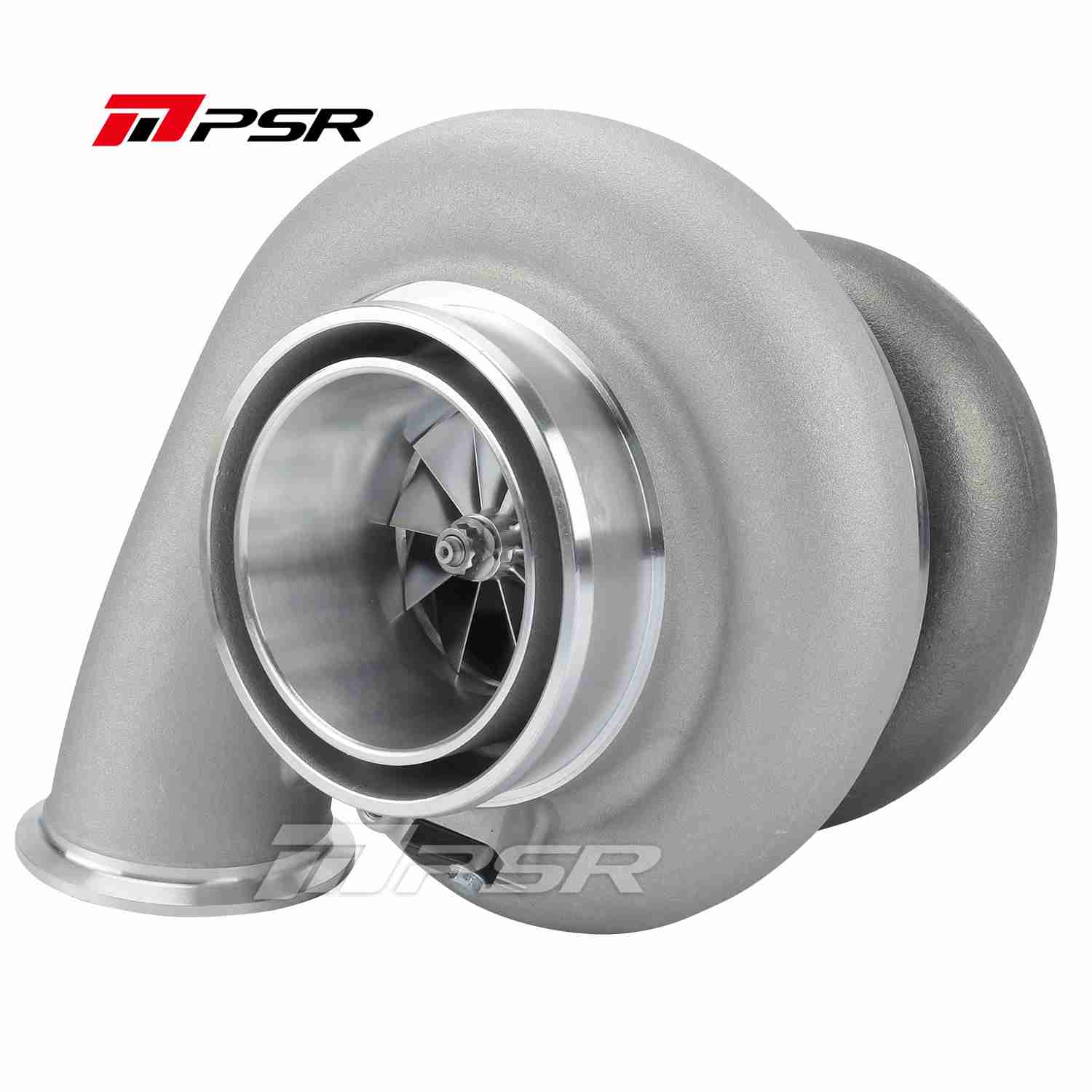

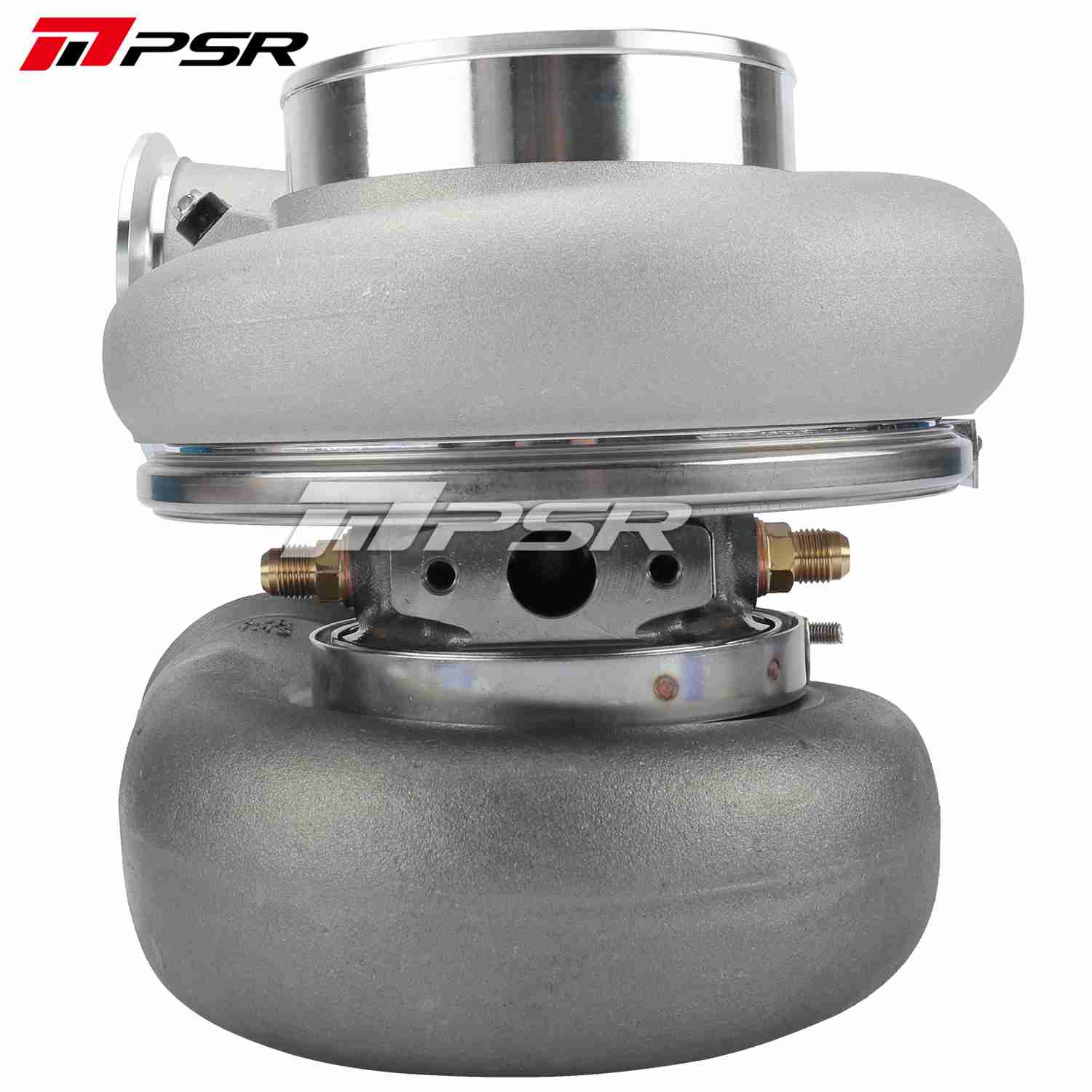

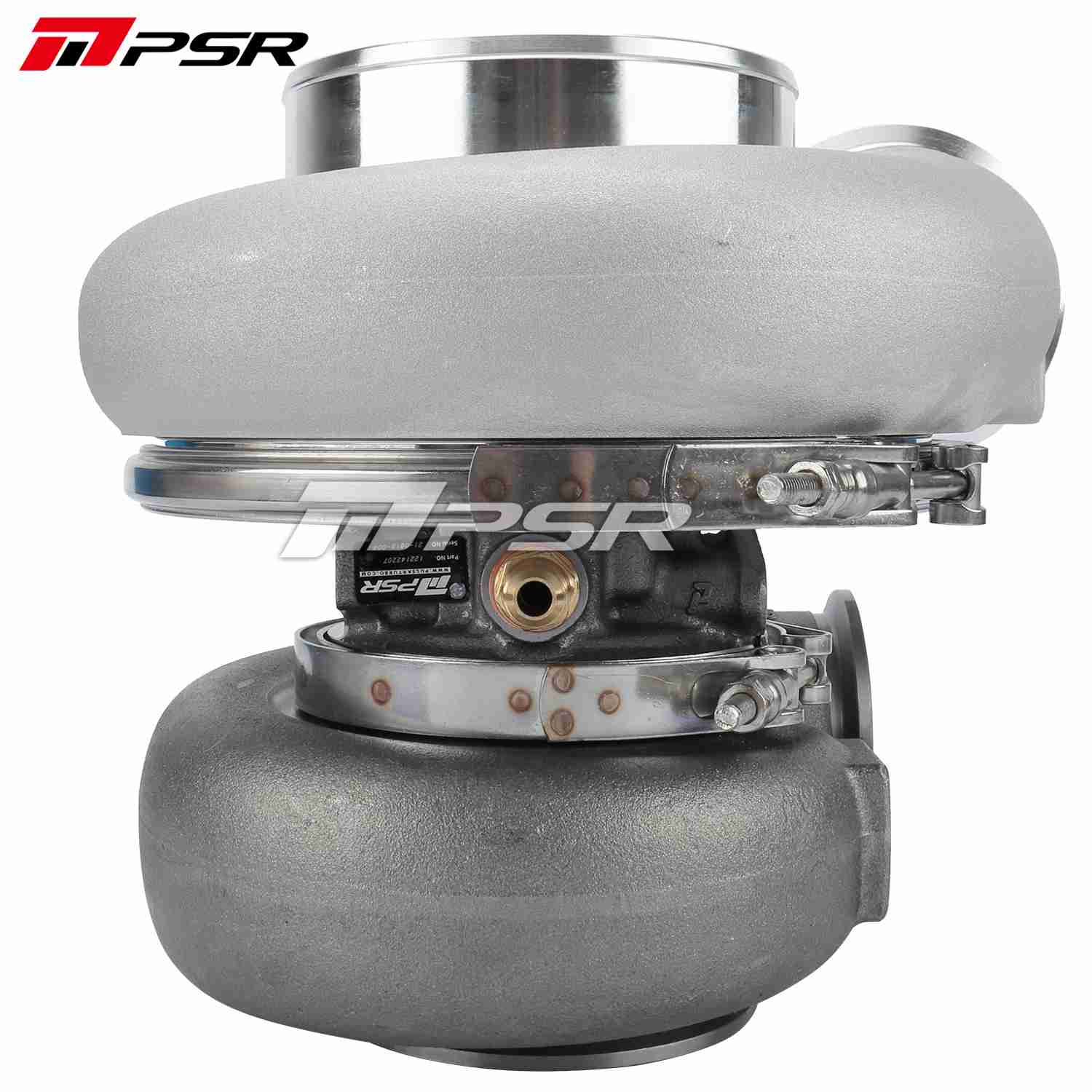

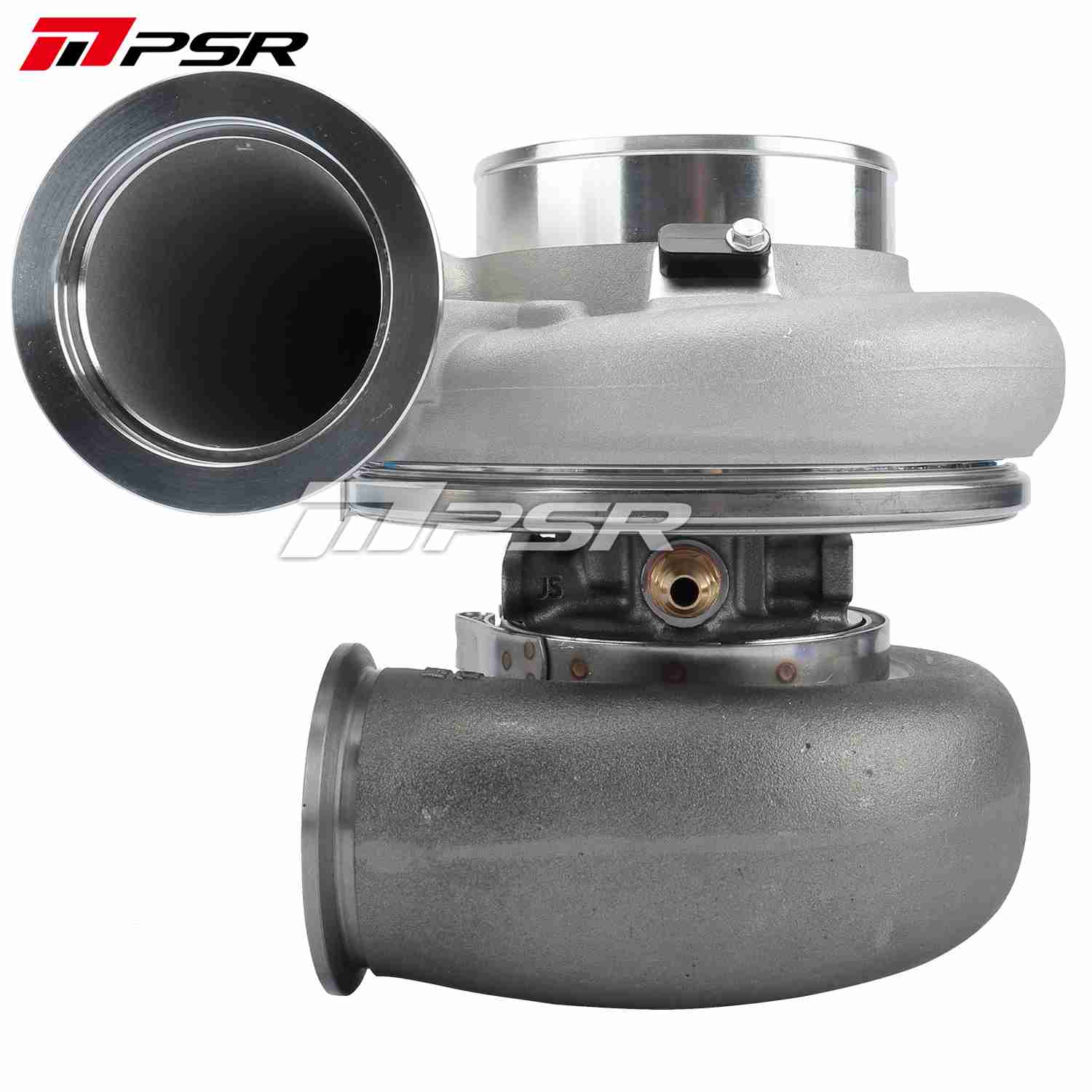

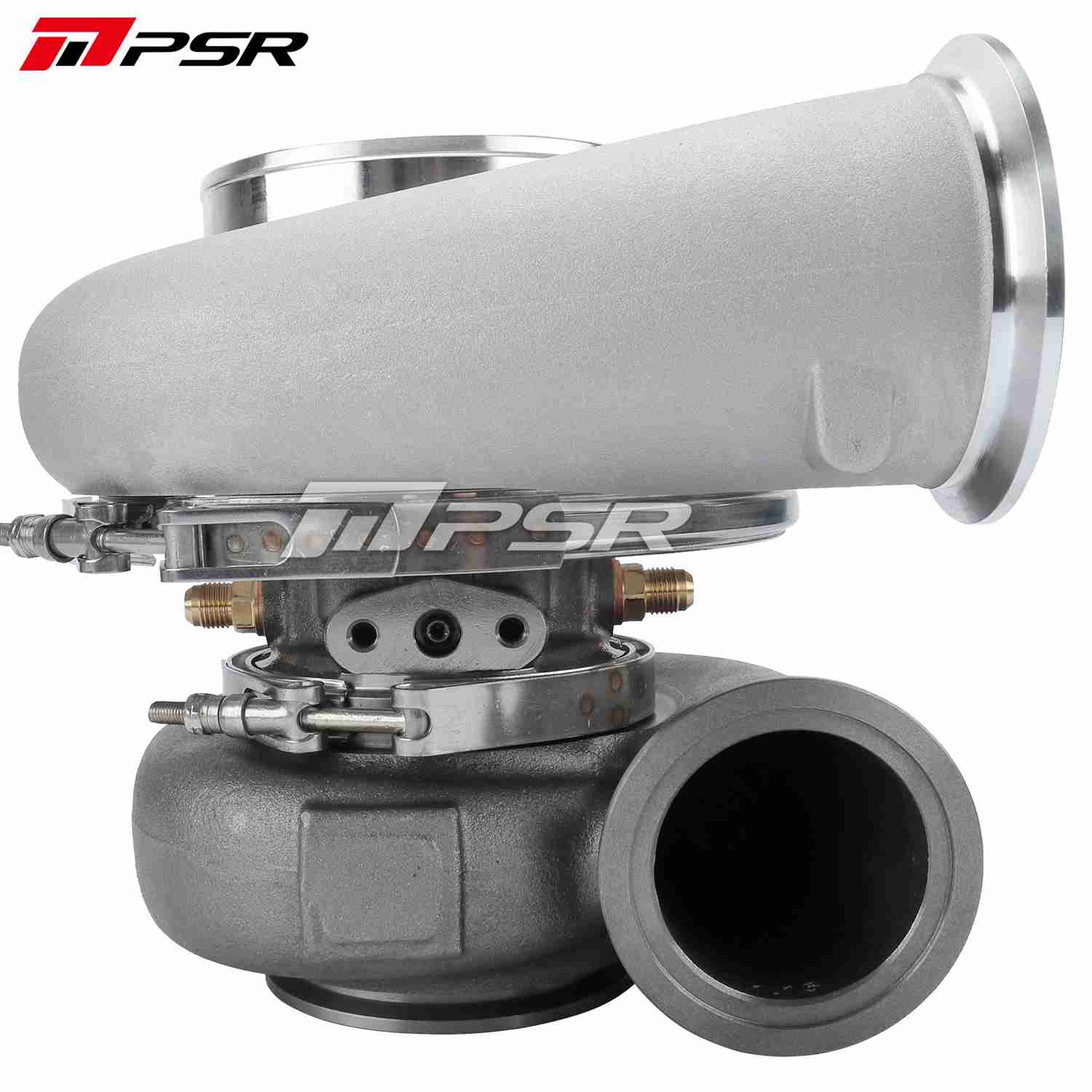

• Compressor Wheel: 79*98mm
  • Turbine Wheel: 82*75mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: 3″ V-Band
  • Turbine Inlet: 3″ V-Band
  • Turbine Outlet: 3.5″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

Turbine housing option:

  1. Vband inlet (fit 3¡å OD tubing) and Vband outlet (fit 3.5¡å OD tubing), 1.01 A/R
  2. Vband inlet (fit 3¡å OD tubing) and Vband outlet (fit 3.5¡å OD tubing), 1.15 A/R
