-Compressor Wheel: 67*98mm

-Turbine Wheel: 81.6*89mm

-Compressor Inlet: 5″ Hose

-Compressor Outlet: 3″ V-Band

-Water Ports: -6AN

-Oil Feed: Flange Required

-Oil Drain: Angle 15¡ã, -12AN(O-Ring sealed Flange Kit Incl’)

-Eight Turbine housings in Option:

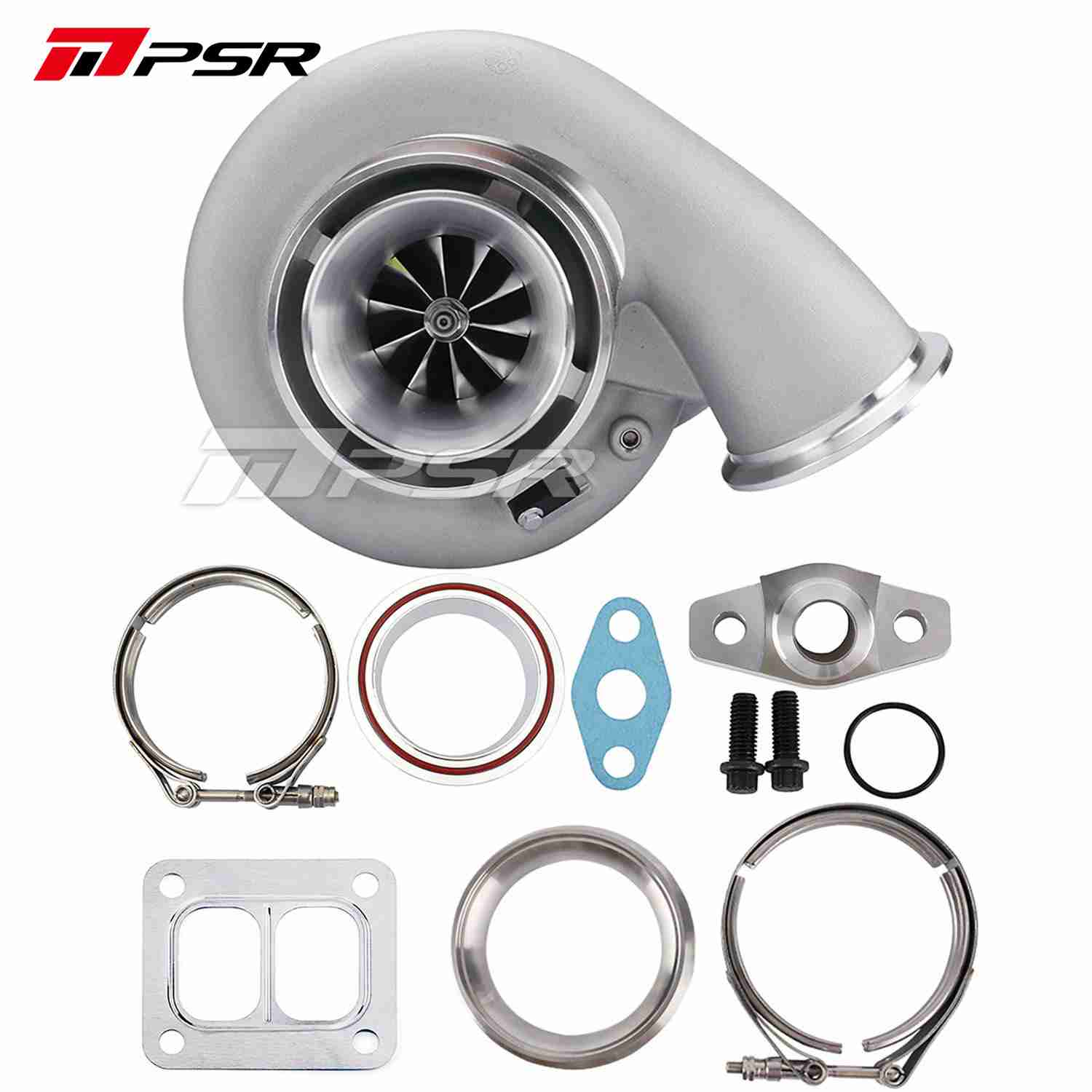

  1. T4(Divided) inlet, Vband outlet, 1.01 A/R

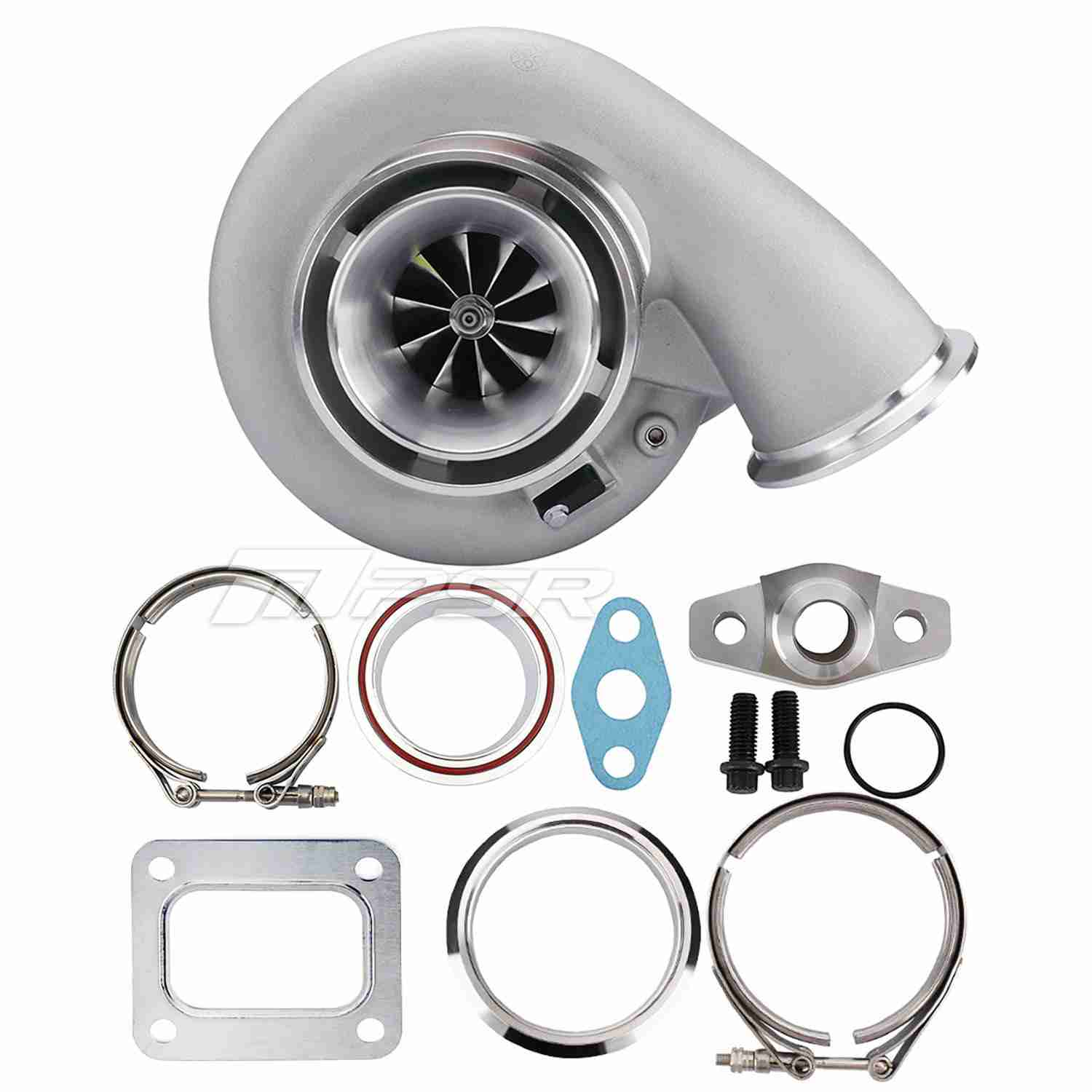

  2. T4(Open) inlet, Vband outlet, 1.15 A/R

  3. T4(Divided) inlet, Vband outlet, 1.15 A/R

  4. T4(Divided) inlet, Vband outlet, 1.28 A/R

  5. T4(Divided) inlet, Vband outlet, 1.44 A/R

  6. Vband inlet and Vband outlet, 1.01 A/R

  7. Vband inlet and Vband outlet, 1.15 A/R

  8. Vband inlet and Vband outlet, 1.28 A/R
