360 Thrust Upgrade Rebuild Repair Kit BorgWarner S400 Turbo 96mm/83mm Turbine

360 Copper Thrust Upgrade for Repair Rebuild Kit BorgWarner Schwitzer S400 Turbo

-Application:

Stock turbo parts Fitment – No modifications required.

Fit forBorg Warner S400 Turbo with 96mm/88mm Turbine Wheel

Borg Warner S400 Turbo with 83mm/74mm Turbine Wheel

-Item Details:

Stepped gap seal ring on the 96mm turbine end(2 turbine side piston rings)

Stepped gap seal ring on the 83mm turbine end

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360 Degree Thrust Bearing CNC machined from COOPER BAR

Reference borg warner number: 171701 171702 177287 171698 14961016100 177101

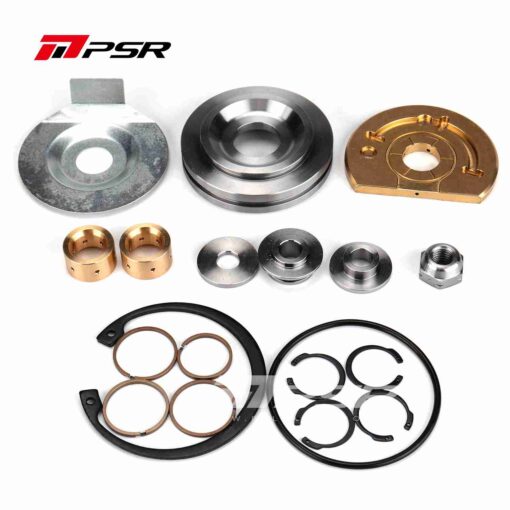

This rebuild kit contains:

Oil Baffle*1

Seal Plate*1

Thrust Collar*1

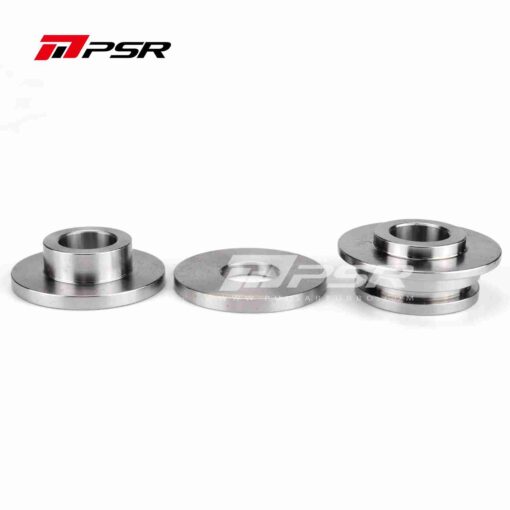

2 Piece Thrust Spacer Set*1

Seal O-Ring*1

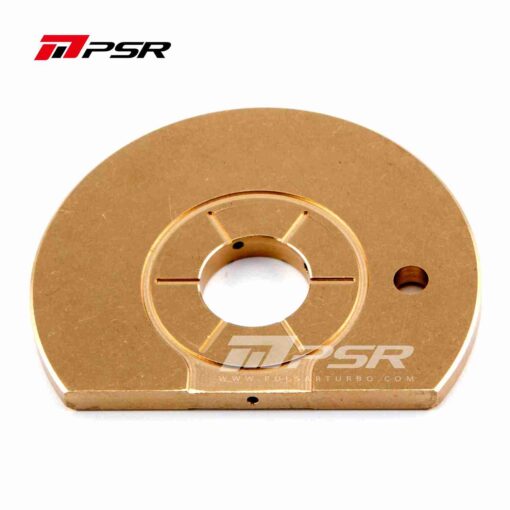

360-degree COPPER Thrust Bearing*1

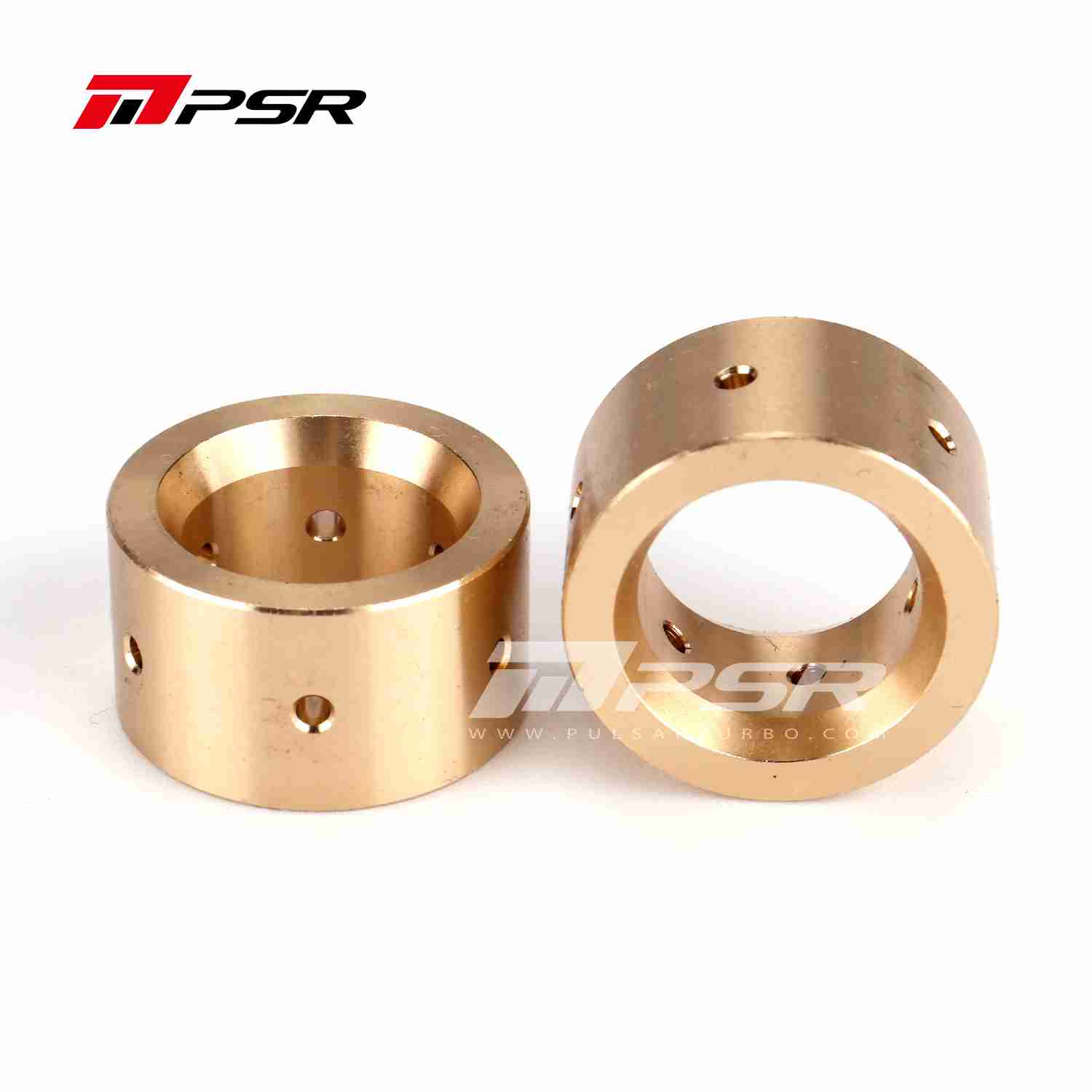

Journal Bearing*2

Compressor wheel Locknut*1

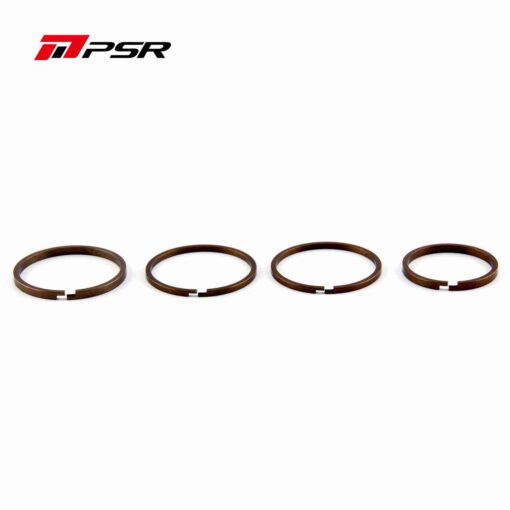

96mm Turbine end seal ring*2

83mm Turbine end seal ring*1

compressor end seal ring*1

Retaining Ring*1

Journal bearing Retaining Ring*4

-Special Note:

1. Please DOUBLE check your sizing prior to purchase!

2. Professional install is highly recommended! Please ask all questions prior to purchase!

3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
