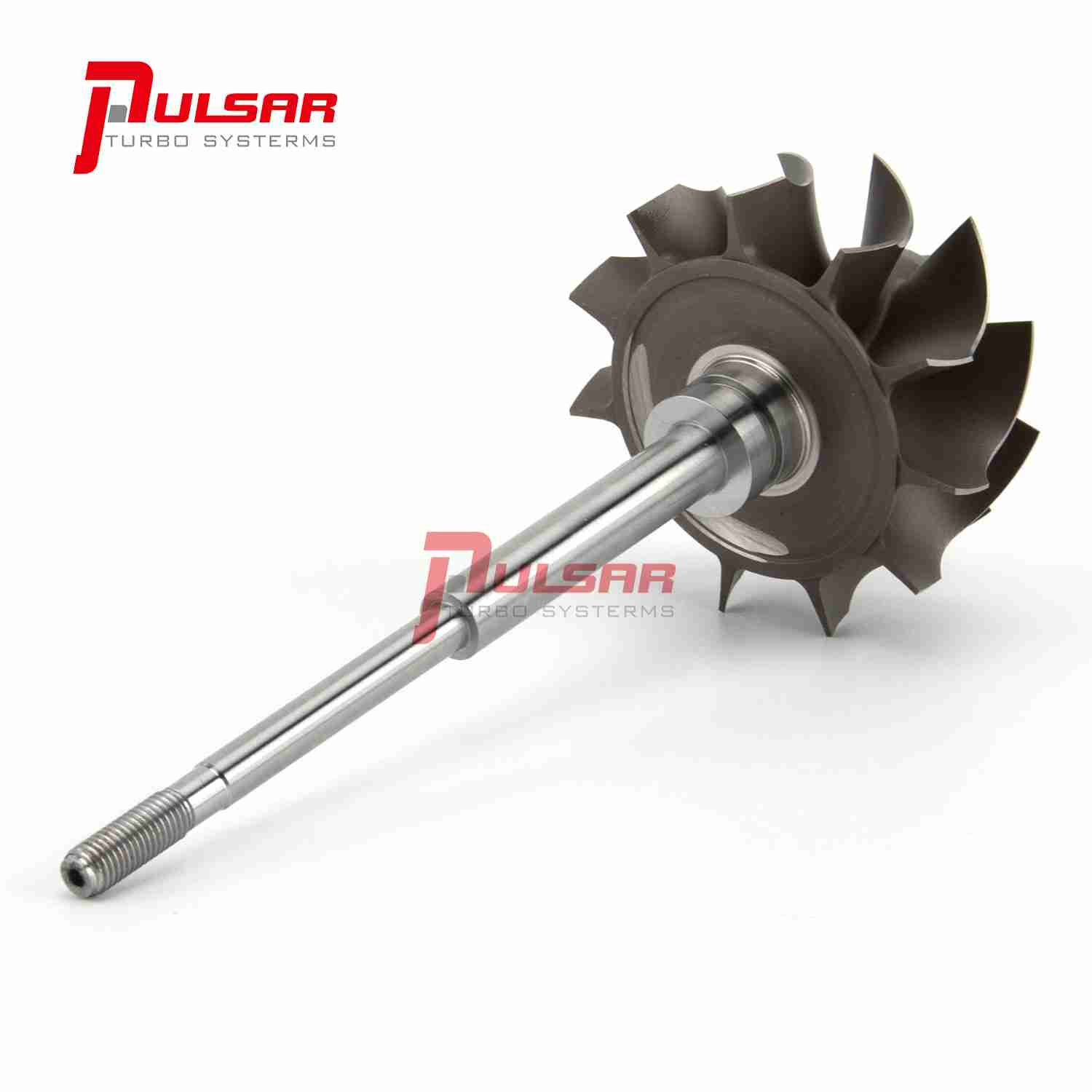

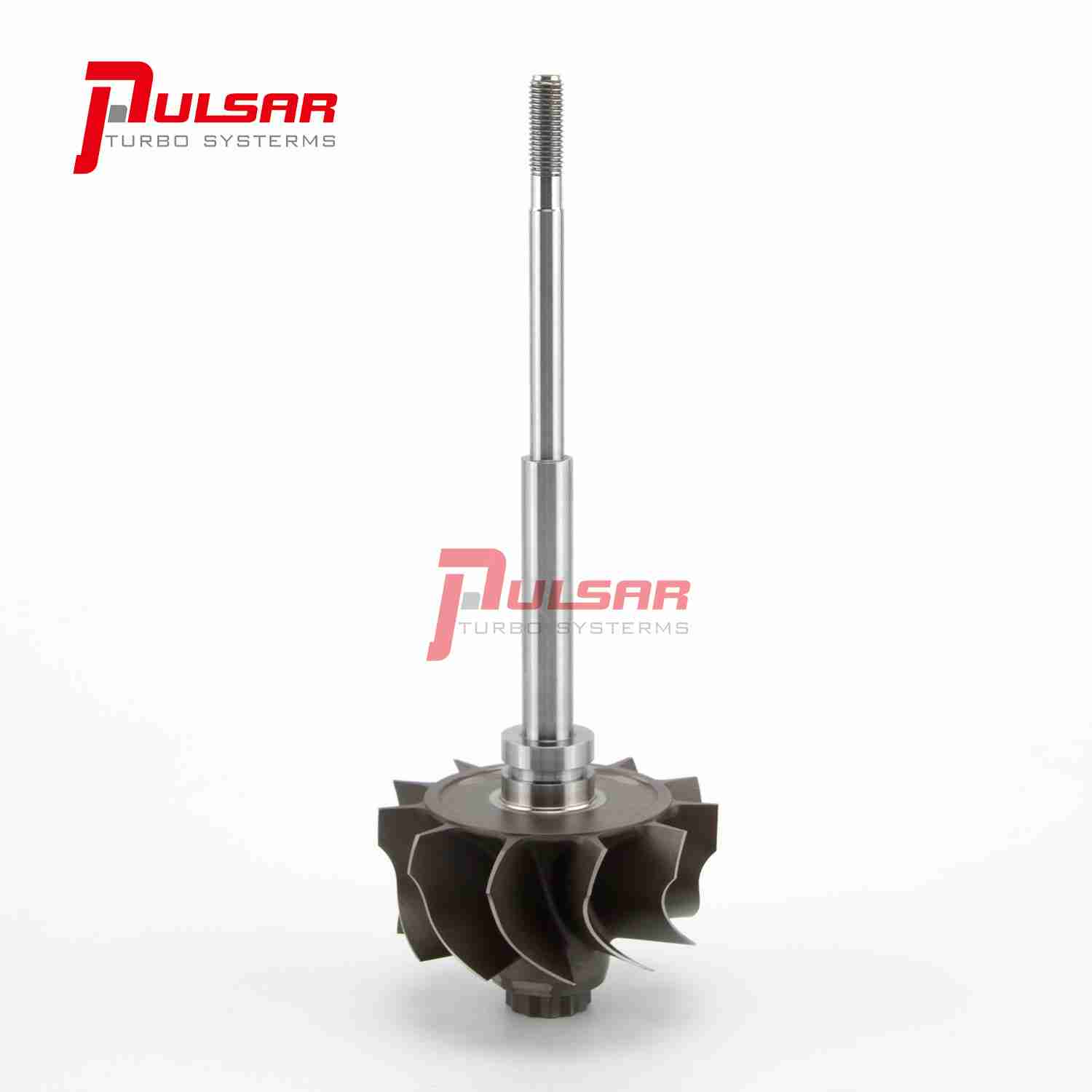

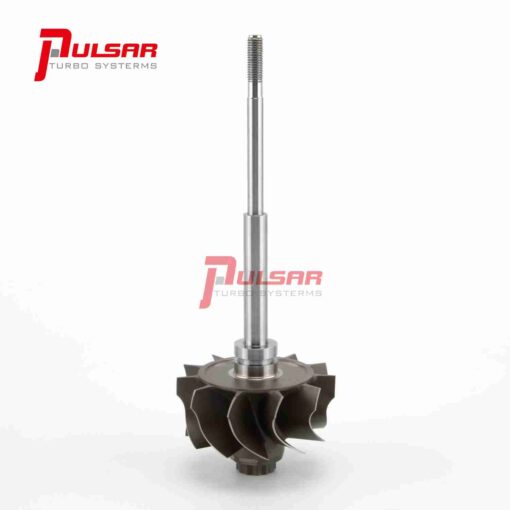

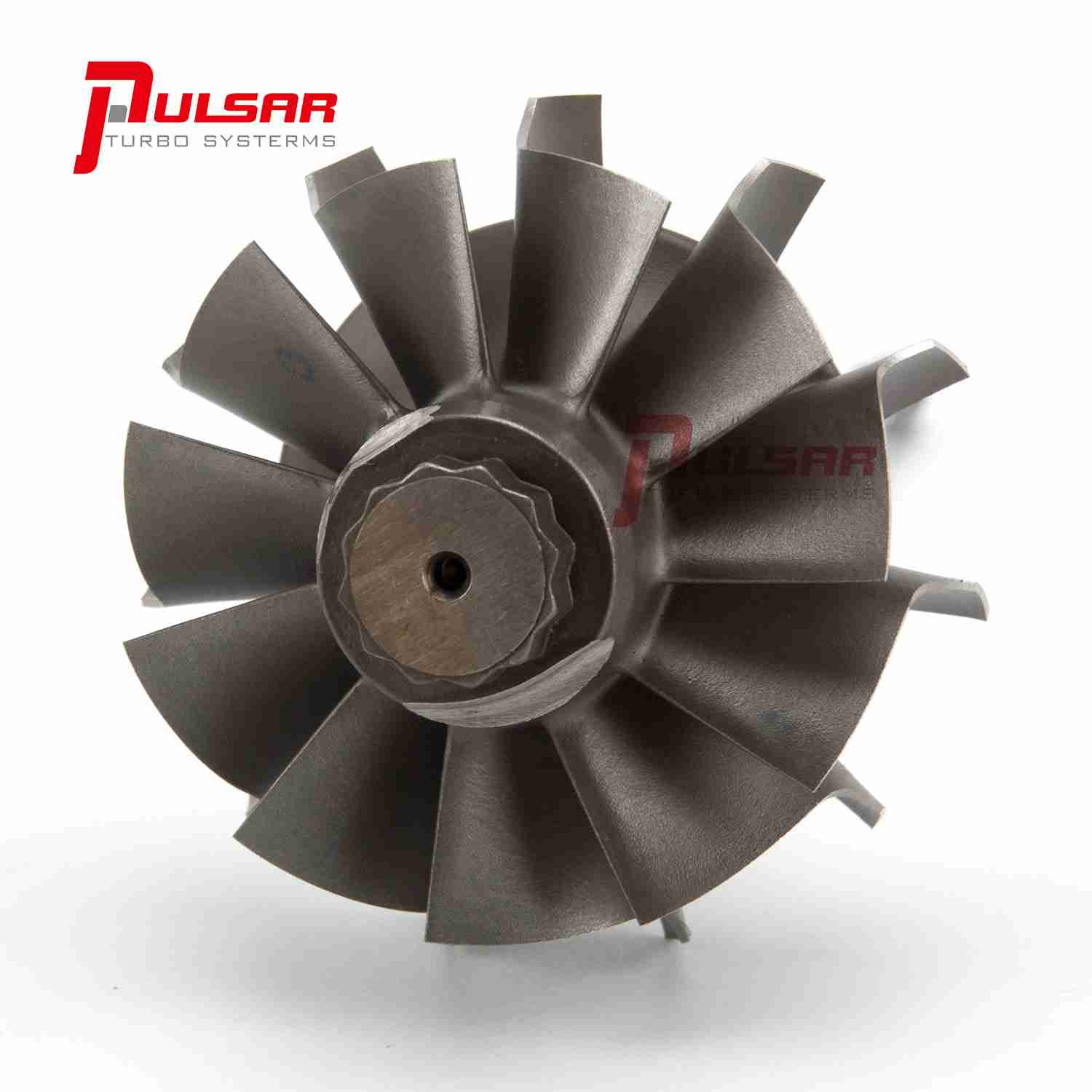

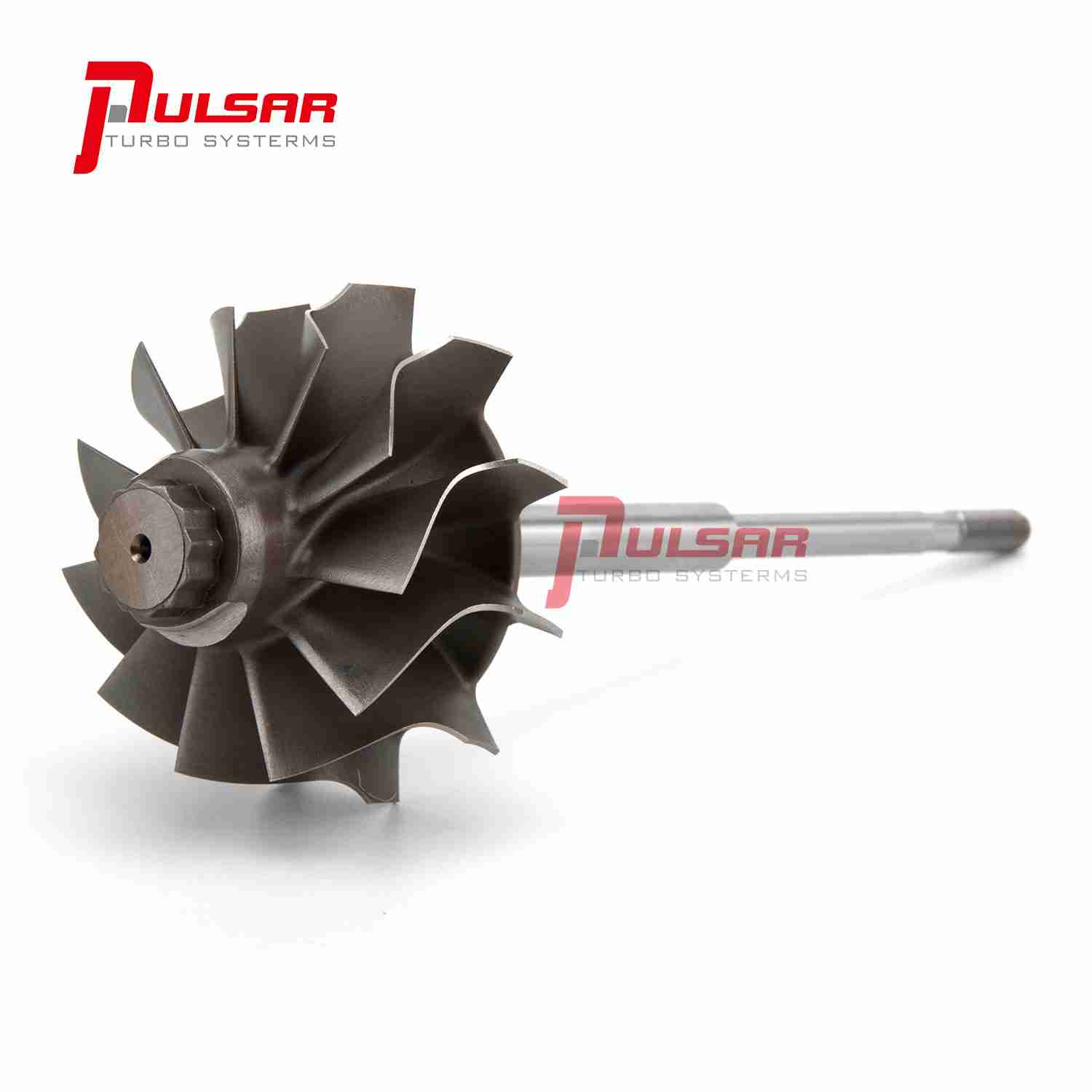

2008-2010 Ford Powerstroke 6.4L High Pressure Side Turbo Charger Turbine Wheel

Turbine Wheel&Shaft for 2008-2010 Ford Powerstroke 6.4L High-Pressure Side Turbo Only

-Application:

Stock turbo parts Fitment – No modifications required.

08-10 Ford E&F series with Powerstroke 6.4L engine, F250, F350, F450 etc.Borg Warner V2S compound Turbo(high-pressure side only).

-Item Details:

Turbine Wheel Inducer: 69.9mm

Turbine Wheel Exducer/Tapered Tip Exducer: 62.7mm

Shaft Diameter: 8.0mm

Blades: 11+0

Reference Part Number:

8C3Z6K682DARM, 8C3Z-6K682-DARM, 8C3Z6K682B, 8C3Z-6K682-B, 1848300C93, 1848300C94 , 1848300C92, 1848300C95, 1848300C96 1848300C97, 1848300C98, 479514 176013

-Special Note:

1. Please DOUBLEcheckyour sizing prior to purchase.
2. Professional install is highly recommended! Please ask all questions prior to purchase!
3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
