03-04 Ford 6.0 Powerstroke Turbo Billet Wheel Upgrade Unison Rebuild Kit 13.2mm Vanes

Billet Compressor Wheel+Nitriding Treatment Unison Ring+Vanes+Rebuild Kit for 03-04 Ford 6.0L Powerstroke Diesel Stock Turbo Only

-Application:

Stock turbo parts Fitment – No modifications required.

2003-2004 Ford 6.0L Powerstroke Stock Turbo ONLY

-Item Details:

Billet Compressor Wheel Inducer: 59.10mm

Billet Compressor Wheel Exducer/Tapered Tip Exducer: 82.04mm/87.50mm

Billet compressor Wheel Blade Height: 33.81mm

Billet compressor Wheel Bore: Threaded-M7x1.0LHT

Billet compressor Wheel Blades: 6+6

High-Quality Stainless Steel unison/nozzle ring, special Heat Treatment – Nitriding Treatment, Stronger & More Wear Resistant & More Durable

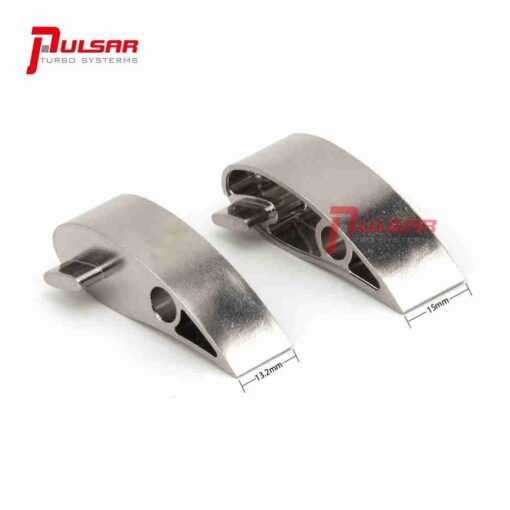

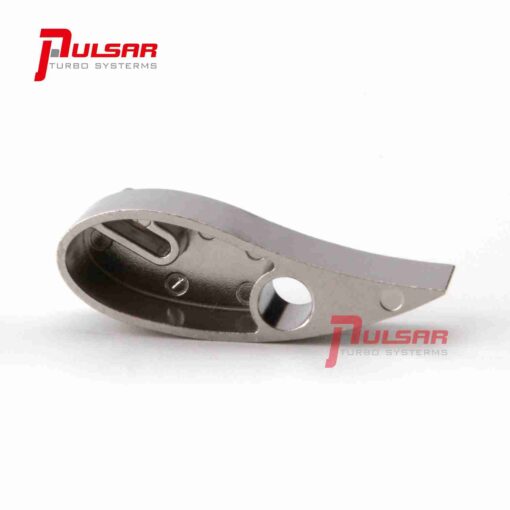

High Nickle content Alloy 13.2mm vanes

Reference OE Part #: 3C3Z-6C885-A

Stepped gap seal ring on the turbine end

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360-degree thrust bearing system

-This rebuild kit contains:

1*BILLET COMPRESSOR WHEEL

1*High-Quality Nitriding Treatment Stainless Steel unison/nozzle ring

9*High Nickle content Alloy 13.2mm vanes

1*SEAL O-RING

1*360 DEGREE THRUST BEARING

1*THRUST COLLAR

1*THRUST SPACER

3*SEAL PLATE BOLT

2*JOURNAL BEARING

1*BEARING SPACER

1*SMALL SEAL O-RING

5*HOUSING BOLT

1*COMPRESSOR END SEAL RING(STEPPED GAP)

1*TURBINE END SEAL RING(STEPPED GAP)

-Special Note:

1. This billet compressor wheel is not compatible with 05-07 56.8mm Inducer. Please check DOUBLE your sizing prior to purchase.
2. Professional install is highly recommended! Please ask all questions prior to purchase!
3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
